Simmer Mobile App UI Kit

£25

A phone app component library on one token file: tab bar, collapsing large titles, grouped lists with swipe actions, sheets that drag between detents, wheel pickers, timers and nutrition rings, plus six working screens of a recipe app, light and dark.

FlipDraggableInertiaPlugin advanced

20 more details

token-themingtheme-switchtouch-gesturestouch-dragdragsnapflip-layoutkeyboard-navigationfocus-managementdialog-animationcount-upcountdownsvg-drawstaggerstate-transitionmicro-interactiontabscarouselspring-physicsview-transitions

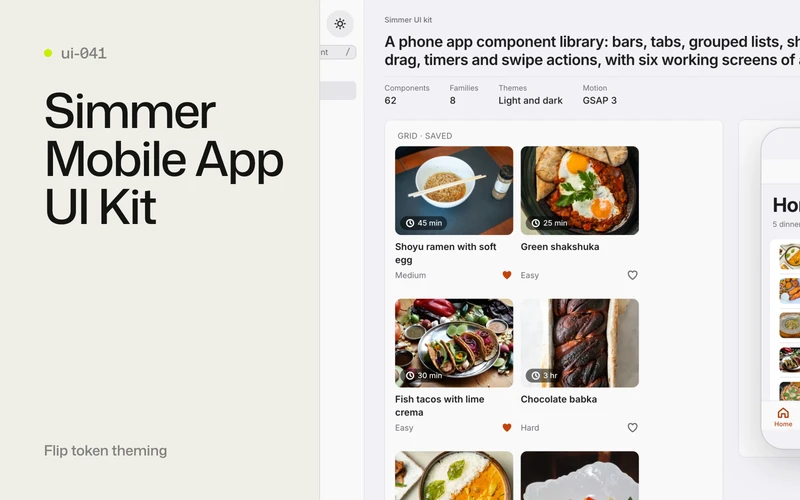

Simmer Mobile App UI Kit - UI component kit preview

The kit's assembled screens, full window and fully interactive:

View interactive demo: Home Recipe Cook mode Shopping Settings Onboarding

About this kit

Simmer is a component library for a phone app, not a demo of one screen. The page you see is the library itself: an index down the left, a search that filters it, and sixty components shown live at product density inside a 390px column, grouped into foundations, controls, inputs, navigation, data display, feedback and overlays, sections, and six screens composed from the parts above.

Read the full effect overview

The register is the rhythm a phone user already knows: a grouped grey ground with white cells, hairline separators inset to the text edge, 44px rows and hit targets, a tab bar, a large title that collapses into the bar as you scroll, sheets that rise from the bottom edge, and one warm accent that means primary or selected. Photographs carry the rest of the colour. One typeface carries hierarchy through weight and size, and the dark theme is the same design at a second set of values.

Every component reads one token file, so cards, lists, sheets, pickers and timers agree about surface, ink, line, radius, spacing and motion. Each ships in its own folder with its markup, its stylesheet and its script, so you can take one part or link the two bundled files and take everything. Overlays share one Escape, one focus trap and one scroll lock; motion is short, springy phone motion, and every animated part has a reduced-motion state.

The six screens are not screenshots. Home, recipe, cook mode, shopping, settings and onboarding each open as a full page you can click around: the tab bar navigates between them, the servings stepper rescales the ingredients, the shopping list checks items off and moves them down, the timer counts, the bottom sheet drags. At desktop widths each screen sits inside a phone-sized frame on the page; on a real phone it fills the viewport edge to edge. Every screen is composed from the components with include directives and a short glue script, so each one is also the worked example of how the parts fit together.

What's included

13 items

Sixty components in eight families, each in its own folder with markup, styles and script
A searchable catalogue page with an index rail, family groups and a theme toggle
One token file driving light and dark themes; no component holds a colour of its own
Navigation bar with a large title that collapses as the content scrolls, a five-tab bar with badges, and a page stack with swipe back
Bottom sheet with half and full detents, drag to dismiss and the content behind scaling back; action sheet, alert, pull-down menu and long-press context menu on one overlay layer
Grouped lists with swipe actions, a reorder handle and check-off rows that move to the bottom
Wheel pickers for quantities and timer durations, a calendar sheet, a search bar whose Cancel slides in, an add-recipe form with a sticky Save
Timer ring, nutrition rings, a servings stepper that rescales an ingredient list, a step list with a one-step-at-a-time cook mode, a week chart
Sections ready to place: photo recipe header, collection shelves, shopping list by aisle, week planner, settings groups, profile header, onboarding pager, plan picker, permission prompt
Twenty baked recipe photographs at card and thumbnail sizes, licensed for redistribution inside your product
Keyboard and ARIA contracts on every control, with 44px hit targets and live announcements for state changes
Reduced-motion end states throughout; nothing animates while off screen
Six screens that open as working pages and navigate between each other, framed as a phone at desktop widths and full-bleed on a phone

Perfect for

4 use cases

A progressive web app or hybrid app (Capacitor, Cordova, a WebView) that should feel like a native phone app
A mobile-first product where the phone layout is the product, not a breakpoint
A recipe, fitness, travel, habit or learning app that starts from finished lists, sheets, timers and a tab bar
A phone prototype or demo that has to survive a real thumb, not just a screenshot

How it works

3 sections

The library is the page

The catalogue is generated from the component folders, so what you browse is exactly what you download. The rail lists every component by family, the search filters both the rail and the specimens, and each specimen is the component in every state a buyer would check, laid out in a phone's width with product copy rather than placeholder text.

One token file, two themes

Surfaces, ink, lines, accent, status colours, chart series, radii, spacing, control heights, bar heights, safe areas, durations and eases are role-named custom properties in one file. The dark theme re-values the same names, so a component never branches on the theme and a rebrand is one edit.

Built for a thumb

Every row, tab and icon button is 44px to hit. The sheet, the swipe actions, the wheel picker and the page stack are dragged with inertia and settle to their nearest resting point, and each one hands the vertical axis back to the list so a phone still scrolls. Everything that opens over a screen goes through a shared layer that owns Escape, the focus trap, focus return, scroll lock and stacking.

Plugins Flip, Draggable, InertiaPlugin

Difficulty Advanced

Includes Every component in its own folder of markup, styles and script, the assembled screens, the two bundles, documentation, AI setup prompt, lifetime updates

Questions about this component kit

Can I take one component without the rest?

Yes. Each component lives in its own folder with its markup, its stylesheet and, where it needs one, its script, so a bottom sheet, a wheel picker or a swipe row travels on its own into a screen you already have. Link tokens.css, base.css and base.js, then that folder's files, and paste the fragment. To use everything, link the two bundled files instead. The catalogue page, its phone frame and its rail are demo furniture; nothing in a product needs them.

Is this for iOS, Android or the web?

It is HTML, CSS and JavaScript, so it runs anywhere a web view does: a progressive web app, a Capacitor or Cordova app, a WebView inside a native shell, or a mobile-first website. The conventions are the ones phone users know from the platform (a tab bar, a collapsing large title, grouped lists, sheets), drawn in our own type, icons and accent rather than copying any vendor's system look.

What kind of app does this suit, and how do I rebrand it?

Anything built from lists, cards, a detail page, a step-by-step mode and settings: a recipe app is the worked example, but a workout app, a travel guide, a habit tracker or a course app uses the same parts with the words changed. Rebranding is editing tokens.css: change the accent, the ground, the ink ramp or the face and every component follows, in both themes, with no component-level overrides. The photographs are yours to replace in assets/img.

Is there a backend, and do the components hold state?

No backend. Every recipe, ingredient, plan and setting is sample content in the markup, and the interactions change the page rather than a database: checking an item moves it down the list, the stepper rescales the quantities, the timer counts from the moment you start it. Wiring it to your data means rendering the same markup from whatever you already have; the scripts initialise any instance they find.

What happens at desktop widths?

The catalogue is a desktop page with the specimens laid out in a phone's width. The six screens open inside a phone-sized frame centred on the page above 520px, and fill the viewport edge to edge below it, so the same file is a demo on a laptop and the app on a phone.

Do the gestures really work on a phone?

Yes. The bottom sheet drags between its detents and dismisses when thrown down, list rows swipe to reveal their actions and swipe fully to commit, the wheel picker flicks and settles on a value, the page stack swipes back from the left edge, and pull to refresh pulls. Each one gives the vertical axis back to the list so the page still scrolls, and every gesture has a keyboard route listed in the README.

Paid component kit

Purchase to unlock the code.

Buying Simmer Mobile App UI Kit opens every component as its own folder of markup, styles and script, the assembled screens and both bundles, the full documentation, an AI setup prompt for your editor, and every update we ship to it. Standard license: unlimited personal and commercial projects.

£25 Standard license, unlimited projects

Browse UI elements

Documentation

Quick Start

There are two ways in. Both need GSAP (core; Flip for the lists that reorder, Draggable and InertiaPlugin for the sheet, the swipe rows, the wheel picker and the page stack).

Everything, two files. In <head>:

Code snippet omitted: it ships with the download.

At the top of <body>, paste the contents of assets/icons.svg once (it is an SVG sprite; the icons reference it with <use href="#i-name">). Before </body>:

Code snippet omitted: it ships with the download.

Then copy any component's fragment from components/<name>/specimen.html into your page.

One component. Link assets/tokens.css, assets/base.css and the component's components/<name>/style.css; load GSAP, assets/base.js and the component's components/<name>/script.js; paste its specimen.html. tokens.css, base.css and base.js are required by everything; a component's own files are all it adds.

The scripts find every instance of their component by its data-kit attribute and initialise each once, so the same fragment can appear as many times as you need. If you render the markup from a framework, call the init after mount (each script is an IIFE that runs on DOMContentLoaded or immediately if the DOM is already parsed; reloading it, or dispatching a synthetic DOMContentLoaded, initialises anything new).

A phone app in a web page

The kit lays everything out in a 390px column. A handset component is built on the .screen scaffold from base.css: the root is the column, .screen__status reserves the status region, .screen__bar holds the navigation bar, .screen__scroll is the only thing that scrolls, .screen__dock holds a tab bar or toolbar and .screen__home the home-indicator inset. Overlays that belong to a screen (a sheet, a menu, an alert) are .layer children of that column and lock the column's scroll region rather than the document.

On a real phone, make the app's root a .screen that fills the viewport (height: 100svh) and the components take the width. In the shipped screen pages the same root sits inside a phone-sized frame above 520px wide and fills the viewport below it; that frame is a few lines of CSS in each page's <head>, and you can delete it.

What's Included

index.html: the catalogue, every component assembled. Generated from components/ and kit.json; the rail and search are demo furniture
home.html, recipe.html, cook.html, shopping.html, settings.html, onboarding.html: the six screens as pages
components/<name>/: one folder per component: specimen.html (the fragment), style.css, script.js
assets/tokens.css: the design system: every surface, ink, line, accent, status and series colour, the type ramp, spacing, radii, control and bar heights, safe areas, durations and eases, in two themes
assets/base.css: reset, type ramp, the shared primitives (.btn, .input, .badge, .avatar, .icon, .group, .menu, .screen, .layer, .hscroll) and layout utilities
assets/base.js: window.Kit, the shared runtime: the overlay layer stack, positioning, focus helpers, motion tokens, the theme switch, long press, a live region
assets/icons.svg: the icon sprite
assets/img/: twenty recipe photographs as baked WebP derivatives, at 640x480 and 240x240
assets/style.css and assets/script.js: the two bundles, generated from the files above
assets/catalogue.css and assets/catalogue.js: the catalogue page chrome only; not needed in a product

The six screens

Each screen has two lives. In the catalogue it is a specimen in the phone stage, so you can see the parts compose. As a page it is the app: the tab bar and the back buttons navigate between the screens, and a cross-document view transition holds the bars still while the content changes.

Home is the entry: tonight's plan, the weeknight shelf, recently cooked, a large title that collapses into the bar as you scroll, the tab bar.
Recipe is the worked example: the photo header, nutrition rings that draw on enter, a servings stepper that rescales every ingredient, the method with inline timers, and a Start cooking toolbar that leads to cook mode.
Cook mode shows one step at a time with the timer, progress along the top, next and back by button or swipe, and the finished alert.
Shopping is the list by aisle: check an item and it strikes through and moves down, swipe to delete with undo, an add field, pull to refresh.
Settings carries the profile header, grouped settings with toggles and value rows, the plan picker and the sign-out alert.
Onboarding is the pager, a diet chips step, the notifications prompt, and into the app.

Components

Foundations

The tokens every screen reads: two themes, one type ramp, the handset column and its safe areas.

Component	Folder	Root	Keyboard
Colour roles	`components/colors/`
Type ramp	`components/typography/`
Icons	`components/icons/`
Layout	`components/layout/`

Controls

Buttons and the small things a thumb rests on, every one 44px to hit.

Component	Folder	Root	Keyboard
Button	`components/button/`	`[data-kit="button"] .btn`	Enter, Space
Icon button	`components/icon-button/`	`[data-kit="icon-button"] .btn--icon`	Enter, Space
Switch	`components/switch/`	`.k-switch`	Space
Checkbox and radio	`components/checkbox-radio/`	`.k-checkbox-radio__row`	Space; arrows in a radio group
Segmented control	`components/segmented-control/`	`.k-segmented-control`	Arrows, Home, End
Stepper	`components/stepper/`	`.k-stepper`	Arrows, Home, End
Slider	`components/slider/`	`.k-slider`	Arrows, Home, End, PgUp, PgDn
Chips	`components/chip/`	`.k-chip`	Enter, Space; arrows move along the row
Rating	`components/rating/`	`.k-rating`	Arrows, Home, End

Inputs

Grouped form fields, search, a wheel picker and a calendar, in the shapes a phone keyboard expects.

Component	Folder	Root	Keyboard
Text field	`components/text-field/`	`.k-text-field`	Native; Escape clears
Search bar	`components/search-bar/`	`.k-search-bar`	Escape cancels; arrows through recents
Wheel picker	`components/picker/`	`.k-picker`	Arrows, PgUp, PgDn, Home, End
Date picker	`components/date-picker/`	`.k-date-picker`	Arrows move days, PgUp and PgDn months, Enter picks, Escape
Form layout	`components/form-layout/`	`.k-form-layout`	Native; Enter adds an ingredient row
Photo picker	`components/photo-picker/`	`.k-photo-picker`	Enter opens the picker; Delete removes the focused tile

Navigation

The shell a phone app lives in: bars, tabs, a page stack with swipe back, and the menus that hang off them.

Component	Folder	Root	Keyboard
App shell	`components/app-shell/`	`.k-app-shell`	Tab order: nav bar, content, tab bar
Navigation bar	`components/nav-bar/`	`.k-nav-bar`	Native
Tab bar	`components/tab-bar/`	`.k-tab-bar`	Arrows between tabs, Enter or Space selects
Page stack	`components/page-stack/`	`.k-page-stack`	Escape pops; Backspace on the back button
Tabs	`components/tabs/`	`.k-tabs`	Arrows, Home, End
Page indicator	`components/page-indicator/`	`.k-page-indicator`	Arrows page
Context menu	`components/context-menu/`	`.k-context-menu`	Shift+F10 or the menu key opens; arrows; Escape
Toolbar	`components/toolbar/`	`.k-toolbar`	Native

Data display

Recipes as cards and rows, the numbers a cook watches, and the lists a cook works through.

Component	Folder	Root	Keyboard
Recipe card	`components/recipe-card/`	`.k-recipe-card`	Enter opens; the save button is its own control
List	`components/list/`	`.k-list`	Arrows move focus; the actions also appear on focus
Carousel	`components/carousel/`	`.k-carousel`	Arrows page
Nutrition rings	`components/nutrition-ring/`	`.k-nutrition-ring`	None
Timer	`components/timer/`	`.k-timer`	Space starts and pauses; Escape resets
Step list	`components/step-list/`	`.k-step-list`	Arrows move; Space completes; Enter starts a timer
Ingredient list	`components/ingredient-list/`	`.k-ingredient-list`	Space checks; the stepper is a control
Avatar	`components/avatar/`	`.avatar`	None
Badges	`components/badge/`	`.badge`	None
Progress	`components/progress/`	`.k-progress`	None
Bar chart	`components/bar-chart/`	`.k-bar-chart`	Arrows move between bars

Feedback and overlays

Everything that rises over a screen shares one layer: Escape, focus, scroll lock and stacking are one implementation.

Component	Folder	Root	Keyboard
Toast	`components/toast/`	`.k-toast`	Escape dismisses the newest
Alert	`components/alert/`	`.k-alert`	Escape, focus trap, return
Action sheet	`components/action-sheet/`	`.k-action-sheet`	Escape, arrows, focus trap, return
Bottom sheet	`components/bottom-sheet/`	`.k-bottom-sheet`	Escape; the grabber is a button that cycles detents
Menu	`components/menu/`	`.k-menu`	Arrows, Enter, Escape, type-ahead
Empty state	`components/empty-state/`	`.k-empty-state`	Native
Skeleton	`components/skeleton/`	`.k-skeleton`	None
Pull to refresh	`components/pull-to-refresh/`	`.k-pull-to-refresh`	A Refresh button for the keyboard
Banner	`components/banner/`	`.k-banner`	Native

Sections

The assembled parts of a recipe app, ready to place: heroes, shelves, the shopping list, the week, settings.

Component	Folder	Root	Keyboard
Recipe header	`components/recipe-header/`	`.k-recipe-header`	Native
Collection shelf	`components/collection-shelf/`	`.k-collection-shelf`	Native
Shopping list	`components/shopping-list/`	`.k-shopping-list`	Space checks; Enter adds
Meal plan	`components/meal-plan/`	`.k-meal-plan`	Arrows across days
Settings group	`components/settings-group/`	`.k-settings-group`	Native
Profile header	`components/profile-header/`	`.k-profile-header`	Native
Onboarding pager	`components/onboarding-pager/`	`.k-onboarding-pager`	Arrows page; Enter continues
Plan picker	`components/plan-picker/`	`.k-plan-picker`	Arrows between plans
Permission prompt	`components/permission-prompt/`	`.k-permission-prompt`	Native

Screens

Six pages composed from the parts above, verbatim. Each opens full screen and navigates to the others.

Component	Folder	Root
Home	`components/home-screen/` and `home.html`	`.k-home-screen`
Recipe	`components/recipe-screen/` and `recipe.html`	`.k-recipe-screen`
Cook mode	`components/cook-screen/` and `cook.html`	`.k-cook-screen`
Shopping	`components/shopping-screen/` and `shopping.html`	`.k-shopping-screen`
Settings	`components/settings-screen/` and `settings.html`	`.k-settings-screen`
Onboarding	`components/onboarding-screen/` and `onboarding.html`	`.k-onboarding-screen`

Themes

<html data-theme="light"> or dark. The toggle in the catalogue rail calls Kit.theme.set(name), remembers the choice in localStorage, and dispatches kit:theme so a chart or a ring can re-read a colour. Light is the default; every foreground and background pair in both themes clears 4.5:1.

Motion and reduced motion

Durations and eases are tokens (--dur-fast 150ms, --dur-base 260ms, --dur-slow 400ms; a soft ease-out for lands, a short overshoot for a tab pop or a toggle knob) read by Kit.dur() and Kit.ease(). Under prefers-reduced-motion every duration reads as zero and continuous motion (shimmer, an indeterminate bar, the timer's ring) shows its end state. Nothing runs while it is off screen: rings draw and counters count when they enter, and stop when they leave.

Gestures and the keyboard

Every gesture has a keyboard route, listed per component in the table above. The rules the touch pieces follow, in case you extend them: a vertical sheet takes the drag; a horizontal swipe row hands the vertical axis back to the list; swipe back starts only from the left edge; a long press is 500ms and cancels on 8px of movement; pull to refresh only begins with the list at the top. Every hit target is 44px in both directions.

Photographs

The twenty recipe photographs are Pexels photographs, cropped and re-encoded as WebP and shipped inside assets/img/. The Pexels licence permits use, modification and redistribution without attribution; the originals are credited below anyway. Replace them by dropping your own files over the same names, or edit assets/img-manifest.json and re-run the bake script in the repository this kit was built from.

Sources (Pexels photo ids): ramen 7490494, shakshuka 29177374, chicken 10821330, aubergine 34492423, burrata 22882531, babka 6150700, carbonara 29039082, tacos 33614224, pancakes 4790406, curry 27287005, soup 17402671, pizza 18437684, smoothie 7937002, salmon 8862746, banana 9928323, risotto 14537701, toast 8335331, cake 19791251, dumplings 7364113, granola 6823360.

What is demo-only

assets/catalogue.css, assets/catalogue.js, kit.json and the rail, search and stage markup in index.html. The phone frame CSS in each screen page's <head>. Everything else is product.

Requirements

GSAP 3.12+ with Flip, Draggable and InertiaPlugin. No other dependency. Built against GSAP 3.15.0.

Worked examples, the events and programmatic API, and the class reference ship with the download, alongside the full source.
