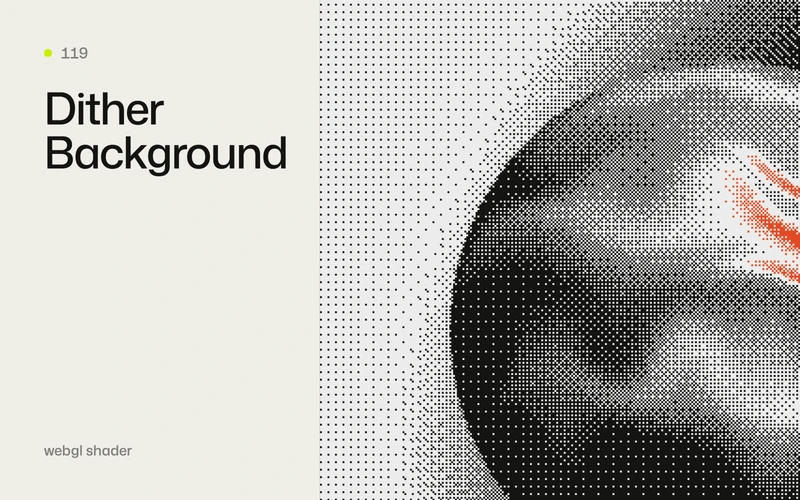

Dither Background

Quick Start

1. Add to your HTML <head>:

Code snippet omitted: it ships with the download.

The inline script is not optional. The layer carries a baked dither frame for visitors without JavaScript or WebGL and for anyone who prefers reduced motion. Without this probe every visitor would download that frame and see it for the moment three.js takes to arrive. The probe runs before first paint and stamps html.gl when a canvas is coming; the stylesheet drops the frame under that class. has-js is only used by the demo's toggle button, which needs the script; drop it if you hide your toggle another way.

2. Put the layer inside any positioned container, before your content:

Code snippet omitted: it ships with the download.

data-dither-calm marks content that should sit on a quiet field (up to four elements per layer). data-dither-toggle on any button in the same container makes it invert the theme from the button.

3. Add before the closing </body> tag:

Code snippet omitted: it ships with the download.

Why the import map: three ships as ES modules only, and its old UMD build logs a deprecation warning on every page load. The shim imports it as a module, puts it on window, and then loads script.js as an ordinary script. If three cannot load, the script still runs on the baked frame, so the theme toggle keeps working.

Already using three.js as a module? Skip the shim and set window.THREE before script.js runs:

Code snippet omitted: it ships with the download.

Using It With Your Own Design

What the effect needs from your markup: a positioned container (relative, absolute or fixed) holding the [data-dither] layer and your content. The layer fills the container with position: absolute; inset: 0, at any size. Your content needs position: relative (or any z-index context) to sit above it. The layer takes no pointer events; the container listens instead, so the light follows the cursor over your text too. Clicks on links, buttons and form fields never invert.

What is only the demo's styling: everything under DEMO in style.css: the .stage box, the cue and the toggle's look. Replace it wholesale.

CSS the effect depends on:

• The container must have a real size. The canvas is sized from the layer.
• The .dither block (position: absolute; inset: 0, overflow: hidden, pointer-events: none, image-rendering: pixelated), its [data-dither-theme="dark"] rule, .dither__canvas, and the .gl .dither rule that drops the baked frame.
• The four frames in img/ (light and dark, landscape and portrait).
• On touch screens the container needs touch-action: pan-y so vertical swipes still scroll. The script sets it inline while it runs if you have not.

Colours are custom properties on .dither, read once at start:

Code snippet omitted: it ships with the download.

Any CSS colour works. Keep paper and ink far apart in brightness: the form is drawn in two of them, and the dots read as tone only when they contrast.

If you change the colours, re-bake the frames. The images in img/ are stored one pixel per cell (3px cells landscape, 4px portrait) and scaled up crisp. Recolour them in any image editor that can replace exact colours (each holds only the three demo colours), or screenshot your restyled layer and scale it down by the cell size with nearest-neighbour sampling.

Following the theme on your page. The layer always reflects the current theme in data-dither-theme (light or dark), switched in the frame the dissolve passes behind your content (your data-dither-calm boxes, or otherwise the container's other children). Follow it from CSS:

Code snippet omitted: it ships with the download.

or from script, with the dither:theme event, which bubbles:

Code snippet omitted: it ships with the download.

To drive the effect from a toggle you already have, call Dither.setTheme('dark') from it (or Dither.invert()), and let the event update the rest of the page.

Contrast. Behind data-dither-calm content the pattern drops to the plain ground and its sparsest dots (at most about one cell in eight in the other colour), and the accent never appears there, in either theme. Text in ink on paper, or paper on ink, keeps its contrast at the brightest moment. Text that sits directly on the dither without calm should carry its own solid backing, as the demo's cue and toggle do: then contrast never depends on which side of the dissolve is behind it.

Options

Attribute	Values	Default	Description
data-dither	(present)		Marks the layer
data-dither-theme	light, dark	light	Starting theme. The script keeps it current afterwards
data-dither-cell	CSS px, 1 and up	3	Cell size. Touch screens use a third more (4px by default)
data-dither-drift	0	on	0 stops the light moving on its own. With no pointer it rests high on the left
data-dither-turn	0 and up	1	Speed of the sphere's slow turn. 0 holds it
data-dither-intensity	0 to 1	1	Scales the whole response: how far the light follows the pointer, the highlight and the glow. At 0 switches are instant
data-dither-calm	(present)		On content in the same container: quiets the pattern behind it (up to four elements)
data-dither-toggle	(present)		On a button in the same container: inverts the theme from the button

With both data-dither-drift="0" and data-dither-turn="0" the canvas stops drawing as soon as the light settles, and only wakes for input or a dissolve.

Behaviour

• Load: the form emerges from the empty ground in Bayer steps over about 1.4 seconds.
• Pointer: the light follows the cursor with weight. Its direction is the pointer's offset from the sphere, so the shadow line swings as you cross it, and a soft glow clears the ground around it. When the pointer leaves the container the light drifts on its own (or returns to rest, with drift off).
• Click or toggle: paper and ink trade places through a dissolve that spreads from the click (or from the toggle) over 1.25 seconds. Inside the front, cells flip in Bayer order, so its edge is a stepped pattern. A second switch during a dissolve completes the first at once and starts from there.
• Touch: the light drifts; drag to move it, and it returns to its drift 2.5 seconds after your finger lifts. A tap inverts from the tap point.

Accessibility

• Reduced motion: no canvas. The layer shows the baked dither frame for the current theme, and switching the theme swaps the frame instantly. No autonomous motion of any kind.
• Without WebGL: the same frames, and the toggle still works. Without JavaScript: the frame for the starting theme; the demo hides its toggle and cue.
• Keyboard: toggles are native buttons. A keyboard press switches the theme at once rather than playing the dissolve.
• Screen readers: the layer and its canvas are aria-hidden. If your toggle's label names the action (Dark, Light), update it from the dither:theme event or with CSS as the demo does.

Dependencies

Dependency	Version	Required
three.js	0.180.0	For the live canvas, as an ES module (see Quick Start)
GSAP core	3.12+ (the demo is built against 3.15.0)	Yes: the load reveal and the dissolve's progress, the ticker the frame loop runs on, matchMedia branching and teardown

No GSAP plugins. GSAP plays the timed values; the frame loop owns the continuous ones (the light's chase and drift, the sphere's turn); the shader quantises everything into cells each frame.

Browser Support

Anything with WebGL, which is every current browser. Support is probed before three.js is asked for a renderer, so a visitor with WebGL disabled gets the baked frame and a clean console. :has() is used only by the demo's styling.

Performance

One draw call per frame, a single full-screen pass. The loop runs only while the layer is on screen and the tab is visible. Pixel ratio is capped at 2 (1.5 on touch devices) and always divides the screen's own ratio by a whole number, so cells stay sharp. To buy back frames on low-end hardware, raise data-dither-cell or set data-dither-drift="0" and data-dither-turn="0".
