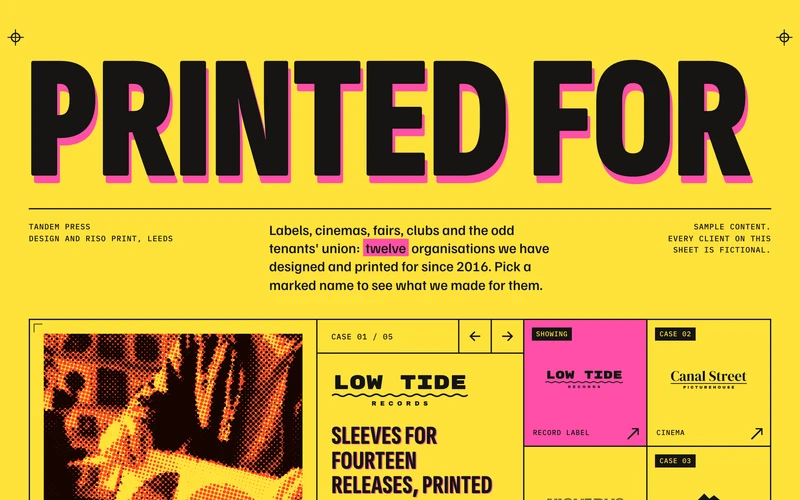

Client Proof Sheet

Quick Start

Files to copy:

Code snippet omitted: it ships with the download.

1. Load the fonts, the stylesheet, GSAP and the script:

Code snippet omitted: it ships with the download.

2. Copy everything between CLIENT PROOF SHEET SECTION: EXTRACT START and EXTRACT END in index.html: the small boot <script> and the <section class="cps">. The boot script reserves the proof's space before first paint so the grid does not jump when the section mounts; if the main script never runs it hands the page back to the plain list after four seconds. Keep it directly before the first section on the page (one copy serves every instance).

Everything outside that block in index.html (the page background and <main>) is demo furniture.

No build step. GSAP core only, no plugins. The section does not install smooth scrolling or pin anything.

Make it yours

Clients

Each client is one <li data-cps-client> in <ul data-cps-list>, in display order:

Code snippet omitted: it ships with the download.

• Logo: src, alt (the client's name; it is also used for the picker label and the "Visit" link) and the image's own width/height so its space is reserved. Any SVG, PNG or WebP works. Logos are shown in one colour on the paper, so a single-colour dark logo on a transparent background reads best.
• Sector: a short plain label under the logo.
• Link: the client's site. Without a case, the whole cell is the link; with a case, the link moves into the proof as "Visit ".

Add, remove or reorder <li> elements freely. The count in the intro (data-cps-count, written as a word up to twenty), the case numbers, the "Case 01 / 05" counter and prev/next all follow the list. When the client count does not fill the last row, hatched blank cells complete it. Keep role="list" on the <ul> and role="listitem" on each <li>: the list is laid out with display: contents, and the roles keep it announced as a list.

Cases

Put a <div data-cps-case> inside any client to make it a case:

Code snippet omitted: it ships with the download.

The first case in the list opens first. One case works (prev/next hide); a sheet with no cases is a plain logo grid. Five or six cases suit the desktop proof; the proof line reads best under about twelve words.

Photographs

Each case photo is an ordinary <img> in the case's <figure>:

File	Source size	Shown as
assets/img/records.webp, cinema.webp, bookfair.webp, lido.webp, climbing.webp	1400 x 933 (3:2)	Portrait-ish crop beside the copy on desktop, 4:3 on phones

To replace one, point src at your own photo, update width, height and alt, and set the focal point with --cps-focus on the <figure> (x% y%, as for object-position). Any aspect ratio works; the proof crops to cover. Choose photos with clear lights and darks: they are printed as halftone, so tonal shape matters more than colour. srcset on the image is copied to the proof as well.

The halftone reads the photo's pixels, so photos must be served from the same origin as the page (or with CORS headers and crossorigin="anonymous"). If they cannot be read, for example when opened from file://, the proof shows the photo as a flat pink duotone instead.

Brand variables

Set these on .cps (or on one section's style to brand only that instance):

Variable	Default	Role
--cps-paper	#ffe23b	Ground and the halftone's paper
--cps-ink	#161412	Type, rules and the black plate
--cps-spot	#ff4fa7	Spot plate, selected cell, offset shadows
--cps-font-display	Sofia Sans Extra Condensed	Heading, proof line, footer line
--cps-font-body	Familjen Grotesk	Body copy
--cps-font-label	IBM Plex Mono	Small labels
--cps-max	1480px	Maximum sheet width
--cps-pad	clamp(16px, 3.6vw, 56px)	Side padding
--cps-rule	2px	Grid rule weight
--cps-row	clamp(150px, 13.5vw, 200px)	Logo cell height
--cps-tx, --cps-ty	0.035em, 0.022em	Pink plate offset under display type

A rebrand example, pale blue stock with orange and navy inks:

Code snippet omitted: it ships with the download.

The halftone reads the three colours when it prints, so it follows the variables. Keep text contrast in mind: --cps-ink carries all small text on --cps-paper and on --cps-spot, and pink or orange spot colours are only used for large or decorative marks.

Behaviour and options

• data-dot="6" on the section: halftone dot pitch in px. Narrow proofs use a finer pitch automatically.
• Picking a case lifts the current print and re-inks the next one in a wave from the picked logo (prev/next start from the proof's left or right edge). The black plate lands late, out of register, and settles. Rapid picks and picks during a print always end on the last choice.
• On a single-column layout, picking a case scrolls the proof into view.
• The heading's pink plate drops into register once when the section is first seen.

Script API, one per page:

Code snippet omitted: it ships with the download.

Tune timings and the print look at the top of assets/script.js (CPS_PRINT_TIME, CPS_KEY_LAG, CPS_MISREG_START, the tone constants).

Accessibility and integration

• The heading is an <h2>; case proof lines are <h3>. Change the tags freely: styles use classes.
• Case pickers are real buttons with aria-pressed and aria-controls; the proof is a labelled region with a polite live status ("Showing Low Tide Records, case 1 of 5"). The halftone canvas is hidden from assistive technology; the photo's alt stays in the proof.
• Keyboard: Tab to any logo, Enter or Space to show its case; prev/next buttons in the proof.
• Reduced motion: cases swap instantly and the heading does not move, including when the preference changes while mounted.
• Without JavaScript, or if GSAP fails to load, every case is written out in full under its logo with a duotone photo.
• The layout follows its own container width (container queries), so it works in narrow columns as well as full width. It needs no fixed height and scrolls with the page.
• Tested in Chromium at desktop, laptop, 390px phone and a 440px host column, with a hostile host stylesheet and two instances on one page.

Dependencies and credits

• GSAP 3 core (free, standard GSAP licence).
• Fonts from Google Fonts under the SIL Open Font Licence: Sofia Sans Extra Condensed, Familjen Grotesk, IBM Plex Mono.
• Client wordmarks in assets/logos/ are fictional, built for this demo from glyph outlines of OFL Google Fonts (Rubik Mono One, DM Serif Display, Shrikhand, Bungee, Staatliches, Monoton, Alfa Slab One, Righteous, Italiana, Abril Fatface, Bagel Fat One, Archivo Black) and Ultra (Apache 2.0). They are placeholders: replace them with your clients' own logos.
• Case photographs are AI-generated concept images of fictional places and people, created for this demo. They do not document real clients or real work.
