Datamosh Transition

£7 or the whole Vault, £79.20

A WebGL image slider that changes slide like a broken video file: drag sideways and the current photograph is dragged along in square macroblocks, the next one surfaces in its colours, then the frame heals block by block in a stepped sweep.

advanced
6 more details
webgl-shaderglitchfullscreen-sliderdragvelocity-reactivekeyboard-navigation

This demo reads better at your own screen size than in the frame below:

Open the demo in a new tab
Open Datamosh Transition demo in new tab

Released

About this effect

Datamosh is what happens when a video file loses its keyframe: the player keeps applying the motion of the new shot to the pixels of the old one, so one picture is smeared into the next in blocks until a clean frame arrives. This slider does that on purpose, with your hand as the motion.

Read the full effect overview

Drag sideways and the current photograph does not fade. Its pixels are carried along by the drag in square macroblocks, lane by lane, at slightly different speeds. As the transition runs, the next photograph's edges and shapes surface inside the old one's colours, so for a moment one car is built out of the other's paint. Let go and the stream coasts on for a beat, then slows to rest while the frame heals block by block: a stepped sweep travels the way you dragged, flipping big blocks clean first, then smaller ones, and the last few land together on a crisp keyframe. There is no crossfade and no blur anywhere.

A smear budget keeps it legible: however hard or long you drag, no pixel travels further than a set share of the frame, so the subject is still recognisable at the extreme. It falls back to an ordinary slide rail with working buttons without JavaScript, without WebGL, or under reduced motion.

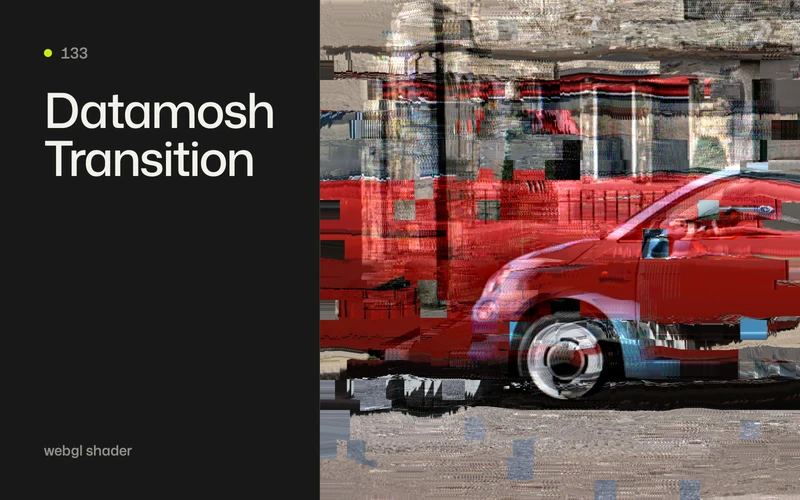

Datamosh Transition - GSAP animation effect preview

What's included

9 items
  • A real feedback stream: every frame copies the previous frame along per-block motion vectors, so the old photograph is physically dragged rather than overlaid with a glitch
  • Macroblocks in three authored sizes that step up with drag speed, with lanes of blocks moving at their own speeds and a share of stuck blocks
  • Motion-compensated residual, as a codec computes it, so the incoming photograph surfaces as edges inside the old one's colours
  • A stepped resolve after release: blocks flip clean in groups along a sweep that follows the drag, 48px then 32px then 16px, while the stream decelerates to rest, ending on a crisp keyframe
  • A smear budget that caps how far any pixel can travel, so the subject stays recognisable however hard the drag
  • Interruptible: a new drag mid-transition carries on from the half-moshed frame instead of restarting
  • Drag with mouse, pen or touch, horizontal trackpad swipes, or click either side of the frame
  • Arrow keys and keyboard-activated buttons cut cleanly with no mosh, and every change is announced to screen readers
  • Draws nothing at rest: the loop only renders while a transition runs, only on screen, and releases the WebGL context on teardown

Perfect for

4 use cases
  • Fashion, music and streetwear campaign pages that want slide changes with a raw, digital edge
  • Photographer and director portfolios where moving between frames should feel like cutting film, not flipping a gallery
  • Product colourway pickers where one finish visibly repaints the next
  • Event and drop pages built around a short set of strong photographs

How it works

3 sections

The slider draws into a single buffer that always holds the last frame shown. At rest that buffer is just the current photograph, and nothing is drawn.

When a drag starts, each frame the buffer is split into square macroblocks and each block copies the previous frame from a little upstream, along a motion vector taken from the speed and direction of your hand, varied per block and per lane of blocks. That is what drags the old photograph. On top of it the shader adds the residual of the incoming photograph: the part of its own movement that the block's vector does not explain, blurred, quantised and split slightly by channel along the drag. As the transition progresses the residual strengthens and a few blocks are refreshed with the clean new photograph. After release comes the resolve: on three grids in turn, coarse to fine, blocks are switched to the clean photograph in quantised groups, in an order that sweeps the way you dragged, while the motion vectors slow to zero. The last few blocks are left for the keyframe, the clean photograph written over the buffer in one frame.

The frame loop runs on the GSAP ticker and owns the gesture velocity, the smear budget and the feedback pass. GSAP itself handles the responsive and reduced-motion branching, the teardown, the fade-up on load and each transition's played timing: the progress ramp after release, the delay before the resolve and the resolve's progress.

Difficulty Advanced
Includes HTML + JS + CSS source, documentation, AI setup prompt, lifetime updates

Lighthouse, as measured

Google Lighthouse on this effect's demo, from the latest scan. A measurement of the demo as shipped, not a promise for your page.

Accessibility
100
Best practices
100

No performance score, on purpose. That figure depends on how you deploy: your server's compression and caching, your CDN, the connection and the device doing the test, none of which the code controls. The same page can score very differently on two consecutive runs, so measure it where it will live.

Paid effect

Purchase to unlock the code.

Buying Datamosh Transition opens the HTML, CSS and JavaScript source, the full documentation, an AI setup prompt for your editor, and every update we ship to it. Standard license: unlimited personal and commercial projects. Every paid product is tested for desktop and mobile layouts, reduced-motion handling, animation cleanup and keyboard controls wherever there is something to operate.

£7 Standard license, unlimited projects

Browse free effects

Or the whole library: the Vault, £79.20, one payment.

Documentation

Quick Start

1. Add to your HTML <head>:

Code snippet omitted: it ships with the download.

The inline script is not optional. The slide rail is the fallback for no JavaScript, no WebGL and reduced motion, and without this it paints for the half second it takes three.js to arrive, then gets swapped for the canvas. The probe runs before first paint, stamps html.gl when a canvas is coming, and the stylesheet hides the rail under that class. No JavaScript, no class, the rail shows; the effect removes the class again if it cannot build a renderer after all.

2. Add the slider HTML anywhere in your <body>:

Code snippet omitted: it ships with the download.

3. Add before the closing </body> tag:

Code snippet omitted: it ships with the download.

The script reads the slide rail, drops a canvas in front of it, and hides the rail once the canvas is actually there.

Why the import map rather than a plain <script src> for three.js: three ships as ES modules only, and its old UMD build logs a deprecation warning on every page load. The shim above imports it as a module (dynamically, so a blocked CDN falls back to your slide rail instead of a blank stage), puts it on window, and then loads assets/script.js as an ordinary script, so the effect itself stays a plain file you can drop into any build (or none).

Already using three.js as a module? Then skip the shim, and just make sure window.THREE is set before assets/script.js runs:

Code snippet omitted: it ships with the download.

Choosing Your Images

This effect has a real content requirement, and ignoring it is the main way to make it look broken. During a transition the old photograph's colour is dragged across the frame and the new photograph only shows through its edges until the keyframe. So:

  • The outgoing photograph needs a strong colour mass. A red car, a yellow wall, a saturated garment: that is what smears. A pale, low-saturation frame drags into grey and the transition reads as noise.
  • The incoming photograph needs a crisp silhouette. Its edges are what surface first. Soft focus, heavy bokeh and busy, fine texture (gravel, foliage, crowds) give a weak or snowy residual.
  • Put the subject in the same place in every frame. Then one subject visibly repaints the next, which is the moment people remember. Unrelated compositions still work, but read as a generic glitch.
  • Give neighbouring slides different dominant colours. Two frames of the same colour transition into each other with nothing to see.
  • Ship them ungraded. The residual is added on top of the dragged pixels, and a heavily graded or crushed frame clips.

Test at the peak of a drag, not at rest: drag about half the width of the frame and hold still.

Images do not need to share an aspect ratio. The shader cover-fits each one, so a portrait frame and a panorama both fill the stage without distortion. Size them for the largest stage they will fill: 2048px wide covers a full-width stage on a 4K display.

Using It With Your Own Design

What the effect needs from your markup:

  • A root with data-datamosh. It must have a real size: the canvas is sized from its clientWidth and clientHeight (the demo pins it with position: absolute; inset: 0). Give it a height of 0 and you get a canvas of 0.
  • Inside it, a [data-datamosh-slides] list of [data-datamosh-slide] items, each holding one <img>. At least two. The script reuses these images as textures, so there is no second download. A <figcaption> in each slide supplies the caption and the screen reader announcement.
  • Optional controls, each found by its data attribute: [data-datamosh-prev], [data-datamosh-next], [data-datamosh-index], [data-datamosh-total], [data-datamosh-caption] and [data-datamosh-status] (an aria-live region). Leave any of them out and the rest still work.
  • tabindex="0" on the root, so it can take the arrow keys.

What is only the demo's styling: the dark page, the Mona Sans type, the violet accent, the round buttons, the gradient scrims behind the caption and the prompt, the floating prompt itself and the 4:3 band on portrait screens. Restyle or delete any of it. The class names on the chrome are there for styling only; the script finds everything by data- attributes.

CSS the effect depends on:

  • .gl .datamosh__slides { visibility: hidden } and .datamosh.is-live .datamosh__slides { display: none }. These are the fallback gates. Never hide the rail under .has-js alone: a browser can have JavaScript and no WebGL.
  • .datamosh__canvas absolutely positioned over the whole root.
  • touch-action: pan-y on .datamosh. Vertical swipes keep scrolling the page on touch; the effect only claims horizontal drags.
  • .has-js .datamosh__slides { overflow: hidden }. With JavaScript the rail is stepped by the buttons and keys; without it, it stays a native horizontal scroll-snap strip.
  • -webkit-user-drag: none on the images. Native image drag cancels the pointer gesture mid-drag.

Options

Set on the [data-datamosh] root.

Attribute Values Default Description
data-smear 0.05 to 1.5 0.42 Smear budget: the furthest any pixel can be dragged in one transition, as a share of the stage width. Lower keeps the subject cleaner; higher lets a hard drag tear further.
data-gain 0 to 4 1.4 How far the old frame moves for a given hand speed.
data-block 4 to 64 16 Smallest macroblock size in CSS pixels at a 1200px-wide stage. Faster drags step up to twice and three times this. Blocks scale down on narrower stages.
data-cut 0 to 3000 450 Milliseconds from release to the start of the resolve. The stream keeps coasting until then.
data-resolve 0 to 2000 360 Length of the resolve in milliseconds: the stepped sweep that heals the frame block by block (48px, then 32px, then 16px blocks) while the stream slows to rest. 0 cuts straight to the clean frame.
data-wheel 0, 1 1 Horizontal trackpad swipes drive the slider. Vertical wheel always scrolls the page.
data-resolution 0.25 to 1 1 Resolution of the feedback buffer relative to the canvas. Lower is cheaper and makes chunkier pixels.

There is no autoplay. A datamosh is driven by a gesture; an unattended one would just be a glitch loop.

Interaction

Input Result
Drag left or right Moshes into the next or previous slide. The faster the drag, the bigger the blocks. Let go and, after data-cut, the frame heals in a sweep travelling the way you dragged, over data-resolve. A short, slow drag is cancelled and cuts back to the current slide.
Click the left third or the rest of the frame Moshes to the previous or next slide with a played gesture.
Horizontal trackpad swipe The same as a drag.
Arrow keys on the focused slider Cut straight to the previous or next slide, with no mosh.
Prev and next buttons A mouse or touch press moshes; a keyboard press cuts cleanly.
A new drag mid-transition Carries on from the half-moshed frame towards the next slide.

Accessibility

  • Reduced motion: the WebGL scene never starts. The slide rail is the slider: the buttons and arrow keys step it instantly, one photograph at a time, with its caption.
  • Without JavaScript, or without WebGL: the same slide rail. Without JavaScript it is a native horizontal scroll-snap strip you can swipe or scroll. One fallback, three failure modes, and it is never hidden until a canvas has actually been created.
  • Keyboard: the root is focusable and takes the left and right arrow keys; the buttons are real <button>s. Keyboard-initiated changes cut cleanly and never play the mosh.
  • Screen readers: the root is a labelled carousel region, the canvas is an image labelled with the current slide's alt text, and each change is announced through the live region ("Slide 2 of 4: ...").
  • Flashing: a transition is a single smear and one resolve per gesture. Nothing repeats or flickers on its own.

Dependencies

Dependency Version Required
three.js 0.180.0 Yes, as an ES module (see Quick Start)
GSAP core 3.15.0 (3.12+ works) Yes: matchMedia branching, teardown, the load fade-up and each transition's played timing (progress ramp after release, the delay before the resolve, and the resolve's progress)

No GSAP plugins. The frame loop runs on gsap.ticker and owns the gesture velocity, the smear budget and the feedback pass; it reads the resolve's progress each frame and turns it into stepped block thresholds and a slowing stream. GSAP never drives the stream itself.

Everything the effect uses (WebGLRenderer, WebGLRenderTarget, ShaderMaterial, PlaneGeometry, OrthographicCamera, Texture, TextureLoader) is long-stable three.js API, so pinning to a different version is a one-line change in the import map.

Browser Support

Anything with WebGL, which is every current browser. Support is probed before three.js is asked for a renderer, deliberately: three logs its own failure to the console, as errors, several times over, before it throws, so catching the exception would hide nothing and a visitor with WebGL disabled would get a console full of red on a page that had quietly fallen back. Probed first, that visitor simply gets the slide rail and a clean console.

Import maps are supported everywhere current. In a browser old enough to lack them the module never runs, window.THREE is never set, and the slide rail is again what shows.

Performance

At rest it costs nothing: the buffer holds a still photograph and no frame is drawn. During a transition each frame is two full-screen passes: one feedback pass (seven texture reads per pixel) into a buffer the size of the canvas, and one copy to the screen. The loop is gated on an IntersectionObserver and does not run at all while the slider is off screen. Pixel ratio is capped at 2 (1.5 on touch devices).

To buy back frames on low-end hardware, lower data-resolution first. It shrinks the feedback buffer, which is where all the per-pixel work happens, and at 0.5 it quarters the cost while the blocks simply get chunkier.

Credits

The demo photographs are bundled as resized, retouched derivatives (badges, hub logos, window stickers and a painted pavement sign removed). Originals:

Used under the Pexels and Unsplash licences. Replace them with your own by swapping the files in assets/img/, or edit assets/img-manifest.json and re-run the bake.

Worked examples, the events and programmatic API, and the class reference ship with the download, alongside the full source.
