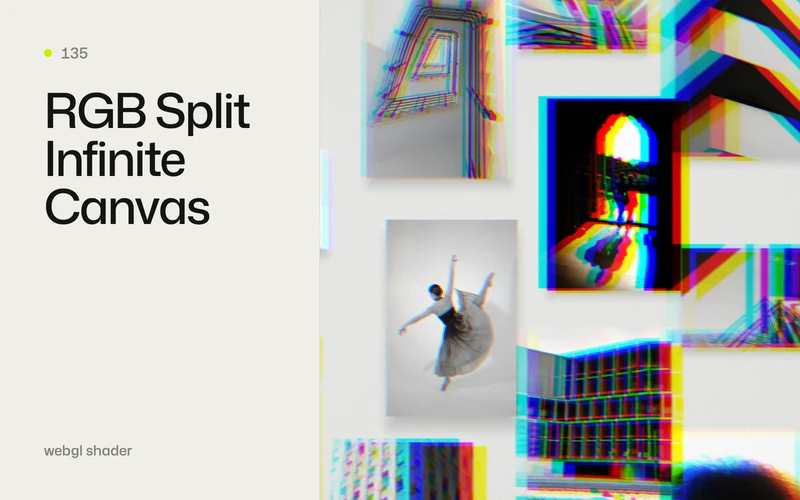

RGB Split Infinite Canvas

Quick Start

1. Add to your HTML <head>:

Code snippet omitted: it ships with the download.

The inline script is not optional. The list of photographs is the fallback for no JavaScript, no WebGL and reduced motion, and without this it paints for the half second it takes three.js to arrive, then gets swapped for the canvas. The probe runs before first paint, stamps html.gl when a canvas is coming, and the stylesheet hides the list under that class. No JavaScript, no class, the list shows; the effect removes the class again if it cannot build a renderer after all.

2. Add the effect HTML where you want the field:

Code snippet omitted: it ships with the download.

3. Add before the closing </body> tag:

Code snippet omitted: it ships with the download.

The script textures each print from your <img> elements (no second download), drops a canvas in front of the list, and moves the list off screen once the canvas is actually there. The list stays in the page, so screen readers still get every photograph and its description.

Why the import map rather than a plain <script src> for three.js: three ships as ES modules only, and its old UMD build logs a deprecation warning on every page load. The shim imports it as a module (dynamically, so a blocked CDN falls back to your photographs instead of a blank stage), puts it on window, and then loads assets/script.js as an ordinary script, so the effect itself stays a plain file you can drop into any build, or none.

Already using three.js as a module? Skip the shim and set window.THREE before assets/script.js runs:

Code snippet omitted: it ships with the download.

Choosing Your Images

This effect has a real content requirement. At speed the shader pulls each print's red, green and blue channels apart along the direction it is moving, and the drag can go any way. So:

• Hard edges in both directions work; soft gradients do not. Silhouettes, shadow lines, stairs, facades, type and graphic work give the reads something to separate. Skies, fog, bokeh and flat colour fields split into a faint blur and look like a mistake.
• Strong tonal contrast. A dark shape on a light ground (or the reverse) gives the clearest coloured fringes.
• Black and white is the demo's choice, not a rule. In monochrome the split is the only colour on the page, so colour appears only while the field moves. Colour photographs work too: the reads then fringe each photograph's own colours, so the split reads as a shimmer on top of the colour rather than the colour arriving from nowhere.

Test at a fast throw, not at rest. Images do not need to share an aspect ratio: each print takes the aspect of its photograph inside the same box, which is what gives the field its mix of portrait and landscape prints. Around 640px wide is enough for the default print size on a 2x screen.

Using It With Your Own Design

What the effect needs from your markup: an element with data-split-canvas containing a [data-split-canvas-source] list of <img> elements. The width and height attributes are read for each print's aspect before the photograph decodes, so keep them accurate. The images are spread around the field so that, with 8 or more, neighbouring prints never repeat. The cue paragraph is optional.

What is only the demo's styling: the grey ground, the Mona Sans cue pill and its accent dot, and the fallback grid's spacing. Change the ground with one custom property on the root, which the canvas also reads as its clear colour:

Code snippet omitted: it ships with the download.

A dark ground (below about 18% luminance) automatically gets deeper shadows and no vignette.

CSS the effect depends on:

• The container must have a real size. The canvas is sized from the root's clientWidth and clientHeight; the demo makes it position: absolute; inset: 0 inside a pinned stage. A root with a height of 0 gets a canvas of 0.
• The .split-canvas__source list must stay in the document. It is the fallback for no JavaScript, no WebGL and reduced motion, and it is hidden only by .gl before first paint and moved off screen by .split-canvas.is-live, a class the script adds after a canvas exists.
• touch-action: none on .split-canvas.is-live. The field owns both axes of a touch drag, so on a phone the page does not scroll from on top of it. Give it a bounded height when you place it mid-page, so visitors can scroll past it from outside.

Options

All options are data attributes on the root element.

Attribute	Values	Default	Description
data-cell	px	300	Column pitch. Rows are 1.24 times this; prints fit a box about 77% wide and 100% tall of it. Phones under 600px wide use 62% of it
data-max-split	px	24	How far the red and blue reads can sit from the print at full speed (scaled with the print size)
data-full-speed	px/s	2400	Drag speed at which the split is full
data-split-from	px/s	220	Below this speed there is no split at all, so slow moves and the end of a glide stay clean
data-smear	0 to 1	0.35	How far each read smears along the motion. 0 gives three crisp copies
data-wake	seconds	0.08	Delay of the prints furthest from the hand. 0 moves the field as one sheet
data-wake-radius	px	1100	Distance from the hand at which the full delay applies
data-focus-radius	px	540	Distance from the hand within which prints are held in register
data-focus-hold	0 to 1	0.1	Share of the split kept by the print right under the hand. 1 turns the focus off
data-lift	number	0.05	Extra scale of a lifted print
data-shadow	number	1	Shadow strength multiplier. 0 removes shadows
data-glide	seconds	0.26	Half-life of a throw. Larger glides further
data-grain	0 to 0.12	0.045	Paper grain over the canvas
data-drift	number	1	Touch devices only: a slow drift between touches (below the split threshold). 0 turns it off

Accessibility

• Keyboard: the root is focusable, shows an accent outline on focus, and the arrow keys move the field one print at a time. Steps land at once; they do not animate.
• Screen readers: the canvas is aria-hidden; the list of photographs with their alt text stays in the page, moved off screen rather than removed.
• Reduced motion: the WebGL field never starts. The list shows as a scrolling grid of the same photographs on the same ground, and the drag cue is hidden.
• Without JavaScript, or without WebGL: the same grid, for the same reason. One fallback, three failure modes, and it is never hidden until a canvas has actually been created.
• Loading: each print fades in once its photograph has decoded, shadow and all, so a slow connection shows ground and finished prints, never grey placeholders.

Dependencies

Dependency	Version	Required
three.js	0.180.0	Yes, as an ES module (see Quick Start)
GSAP core	3.15.0	Yes: matchMedia branching (reduced motion and pointer type), teardown, and each print's fade in

No GSAP plugins. The effect's own requestAnimationFrame loop owns the drag, the momentum, the wake and the split; GSAP never drives that motion.

Everything the effect uses (WebGLRenderer, OrthographicCamera, PlaneGeometry, ShaderMaterial, Texture) is long-stable three.js API, so pinning to a different version is a one-line change in the import map.

Browser Support

Anything with WebGL, which is every current browser. Support is probed before three.js is asked for a renderer, deliberately: three logs its own failure to the console, as errors, several times over, before it throws. Probed first, a visitor with WebGL disabled simply gets the grid of photographs and a clean console. In a browser too old for import maps the module never runs and the grid is again what shows.

Performance

Each print on screen is three draw calls: a shadow, then the print in two passes (one darkens the ground by each channel's coverage, the other adds that channel's image). That pair is what lets the red read sit over the ground while the blue read is still over the print, and it cannot be batched without breaking where prints overlap. Prints are culled by hand outside the viewport, so a 1440x900 field draws about 55 to 75 calls instead of 145, and a phone about 60 to 70. The fragment cost is twelve texture reads per pixel while the field moves.

The loop renders only while something is changing: a field at rest costs nothing, it stops entirely while off screen (IntersectionObserver), and pixel ratio is capped at 2 (1.5 on touch devices).

To buy back frames on low-end hardware, lower data-max-split first: the quads grow with the split, so a smaller split shades fewer pixels. A larger data-cell puts fewer prints on screen.

Credits

The demo photographs are from Pexels, used under the Pexels licence and converted to black and white for this demo. Source pages are listed in assets/img-manifest.json. Replace them with your own photographs.
